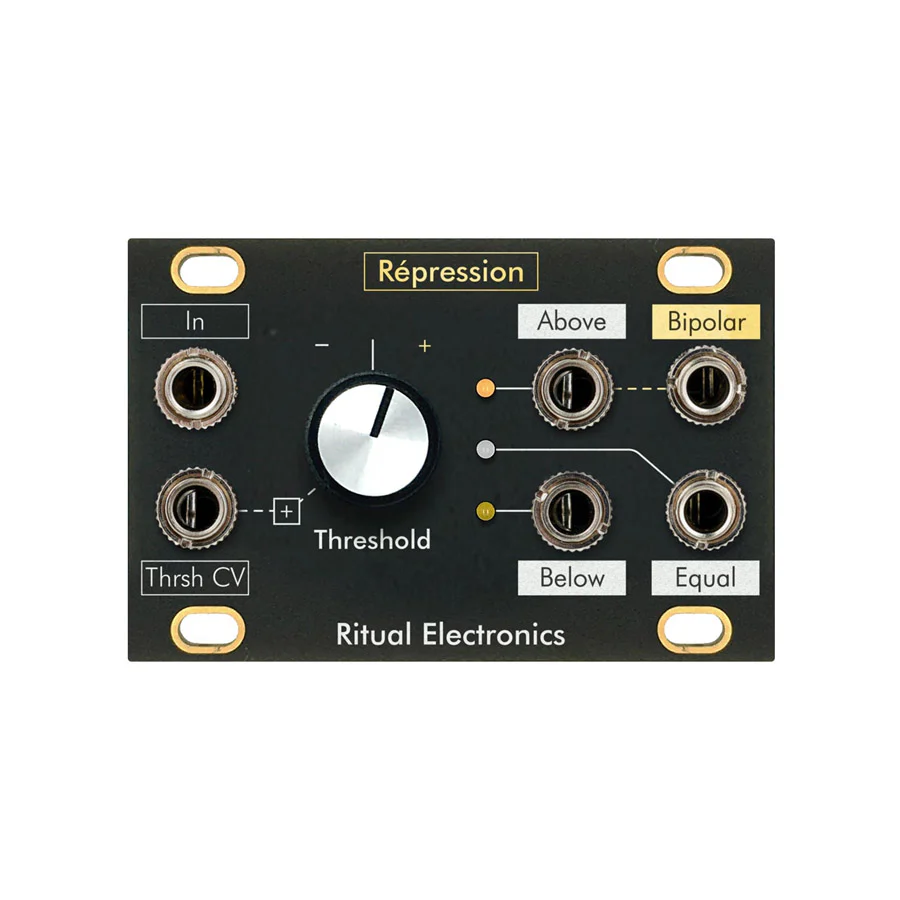

Ritual Electronics Repression
RĆ©pression is a feature packed CV controllable comparator.Ā
RĆ©pressionĀ compares two signals. One at theĀ Input. The other defined by theĀ threshold potĀ and theĀ CV ThrshĀ which is added to the pot. It outputs 4 signals based on the result of the operation.
- AboveĀ is high if the Input is above the threshold.
- BelowĀ is high if the Input is below the threshold.
- EqualĀ outputs a trigger when the input and threshold values are the same.
- BipolarĀ is a +/-5V version of the Above output. Very useful when using the comparator for audio duties. I.e. PWM generator, complex oscillatorā¦
TheĀ Threshold knobĀ has a +/- 8.1V range.
- Width: 12HP
- Depth: 35mm
- Power: 53mA @ +12V / 26mA @ -12V
