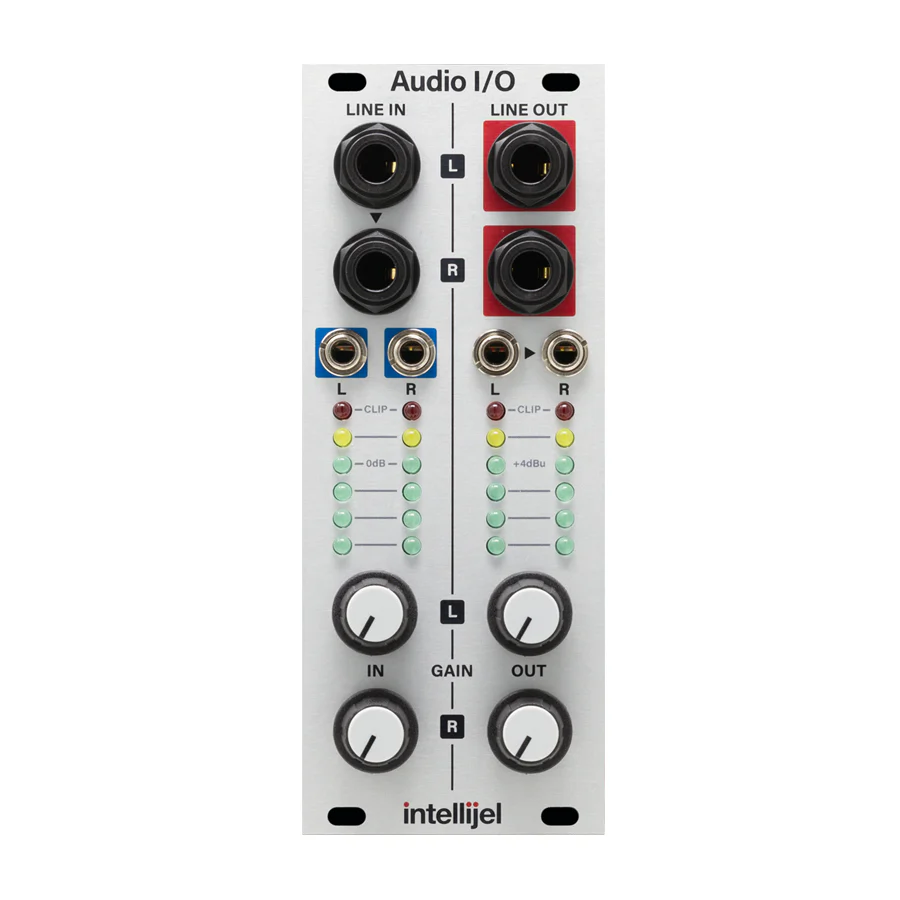

Intellijel Audio I/O (2023 edition)
Audio I/O (2023 edition) allows you to effectively interface your Eurorack modular system to the pro audio, balanced line-level world (+4 dBu).Ā You can send and return to rack mount/desktop fx units, patch to external line-level instruments like synths and drum machines, interface to a DAW and much more.
The rear-mounted 3-pin CHAIN IN connector allows you to sum (in parallel to the panel jacks) other audio sources to go from Eurorack level to the BAL LINE OUTPUTS. This could be from modules like theĀ Mixup 3U,Ā Xfade 1U,Ā Stereo Mix 1U, andĀ XY I/O 1U. You could also use this to connect with the 3-pin headers on theĀ PaletteĀ andĀ 7U casesĀ audio i/o boards.
The rear-mounted 3-pin CHAIN OUT connector allows you to directly connect the level-shifted BAL LINE IN to the inputs of other compatible devices such as theMixup 3U,Ā Outs 3U,Ā Stereo Mix 1U, XY I/O 1U, andĀ Headphones v2 1U. You could also connect the to the TRS jacks of the PaletteĀ andĀ 7U casesĀ audio i/o boards.
- Width: 10HP
- Depth: 39mm
- Power: 75mA @ +12V /Ā 70mA @ -12
