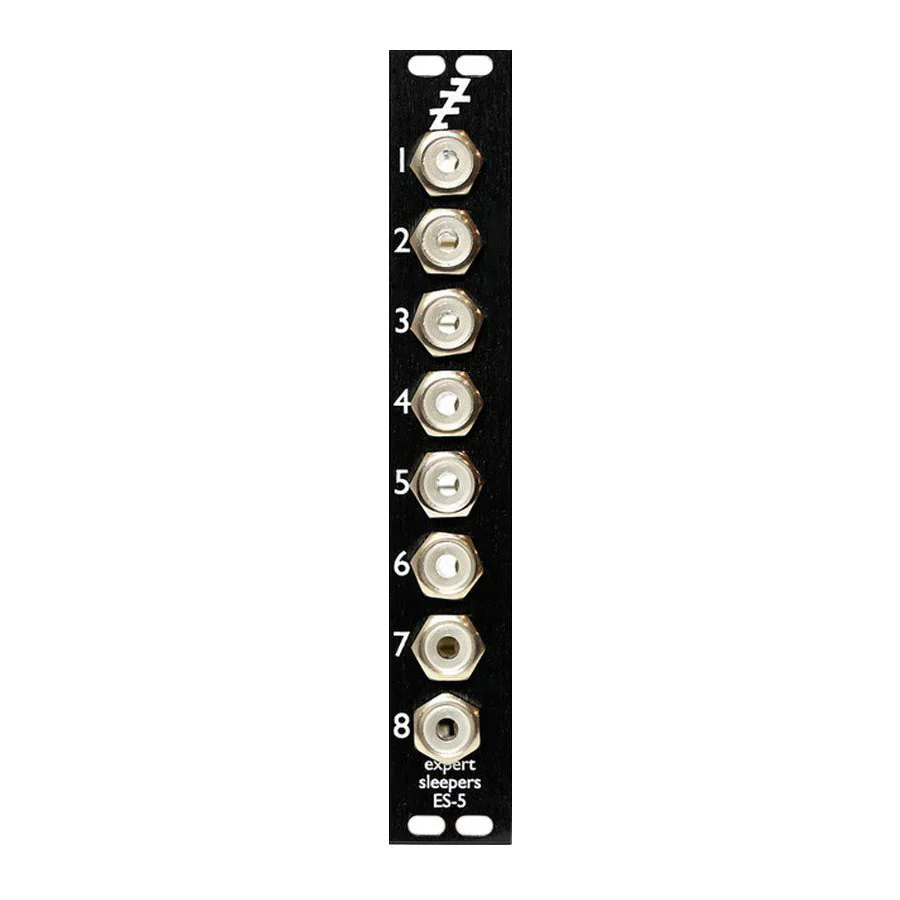

Expert Sleepers ES-5 Mk4
The ES-5 is an expansion module for the Expert SleepersĀ ES-3 Lightpipe/CV Interface,Ā ES-8 USB Audio InterfaceĀ orĀ ES-9 USB Audio Interface.
It piggybacks on one of the host module's stereo channels to provide eight gate/clock/sync/MIDI outputs on the ES-5 itself, plus further expansion headers to connect up to six expansion modules e.g. theĀ ESX-8GT Gate Expander, theĀ ESX-8CV CV ExpanderĀ or theĀ ESX-8MD MIDI/DINsync Expander.
Note: the ES-5 Mk4 is identicalĀ to the ES-5 Kk3 except for the module depth (36mm, previously 49mm).
- Width: 4HP
- Depth: 36mmĀ
- Power: 8mA @ +12V / 0mA @ -12VĀ
