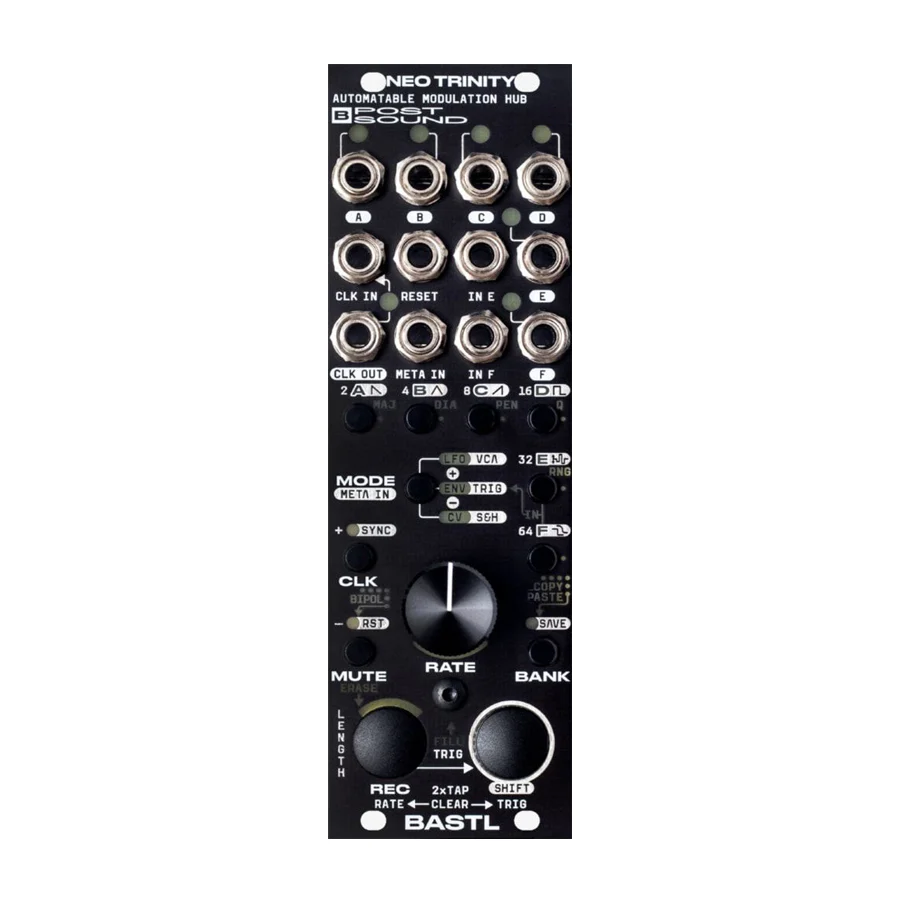

Neo Trinity is a 6-channel compact modulation hub with great musical complexity achievable with simple gestures. Each of the 6 channels can be either LFO, envelope generator, or a CV knob recorder, while their main parameter can be automated with the REC button.

Ultimate automatable modulation hub

Each channel also features a recordable trigger generator with an algorithmic fill feature to get the inspiration started or to make things polymetric and keep your patches ever-changing. Use the SHIFT button to change modulation shapes and sync selected or all channels to an internal or external clock.

Neo Trinity has been designed with performance in mind, so it includes channel mutes and allows storing whole presets as banks.

Easy to control with complex possibilities

While the core mechanics of the module are very straightforward, the inclusion of assignable CV inputs exponentially increases the complexity of the module’s behavior. Control some or all channels in different ways with the META IN and utilize channels’ E and F dedicated inputs. The inputs can control the main parameter in a positive or inverted way, control the output amplitude, and act as an external trigger or a trigger for the internal Sample & Hold function. The CV knob recorder mode also acts as a quantizer, and when combined with the CV inputs, it turns into a handy voltage processor.

• Width: 8HP
• Depth: 24mm
• Power: 100 mA @ +12V /  35 mA @ -12V
